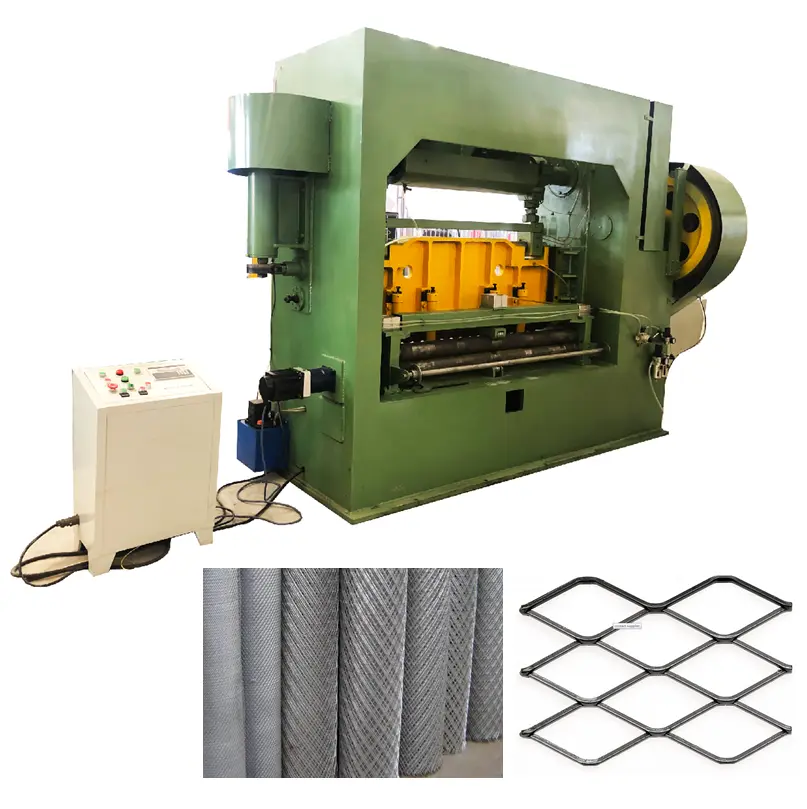

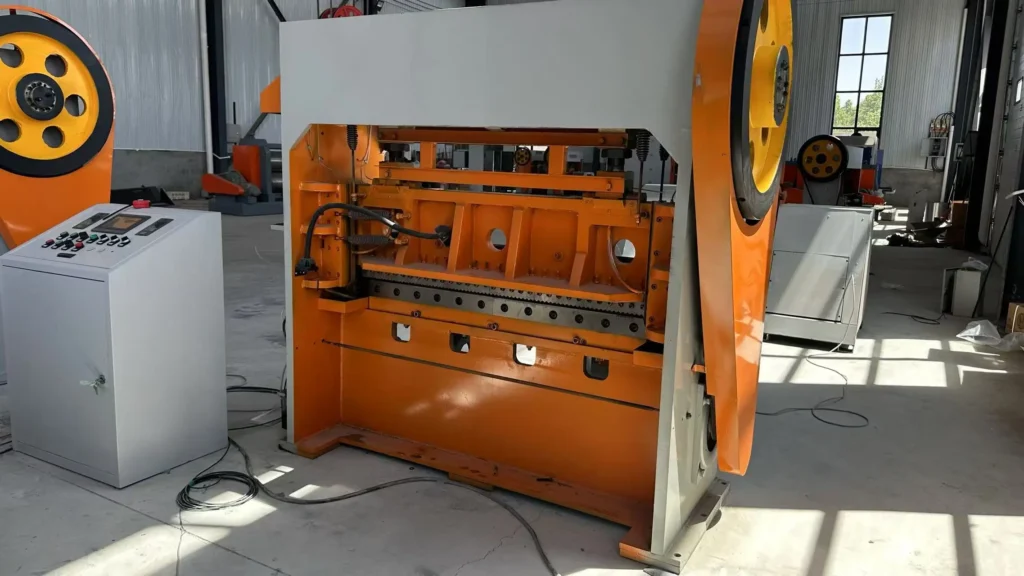

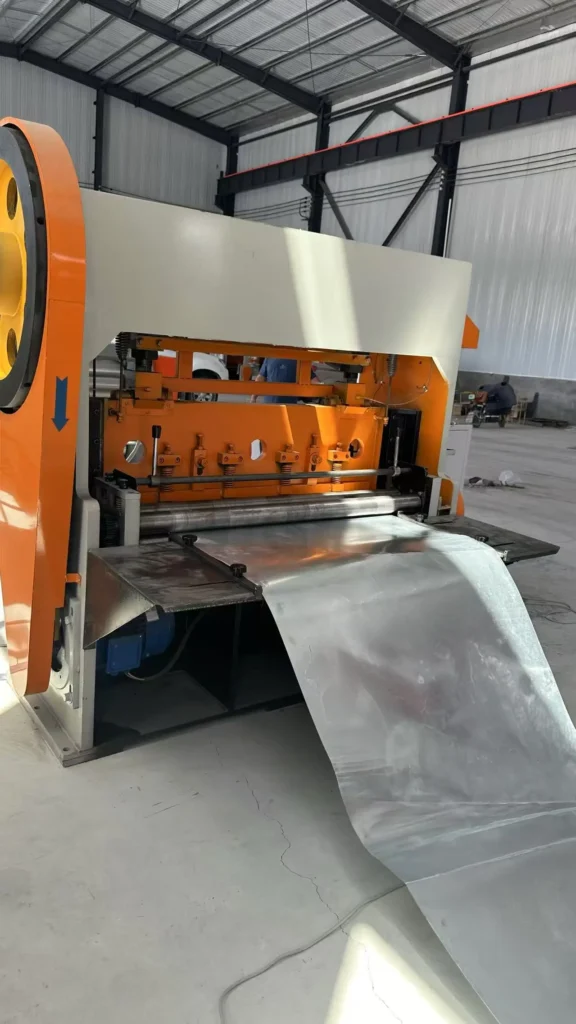

Expanded Metal Mesh Machine
- Full range from 16T to 160T | Custom Solutions for All Materials & Sizes

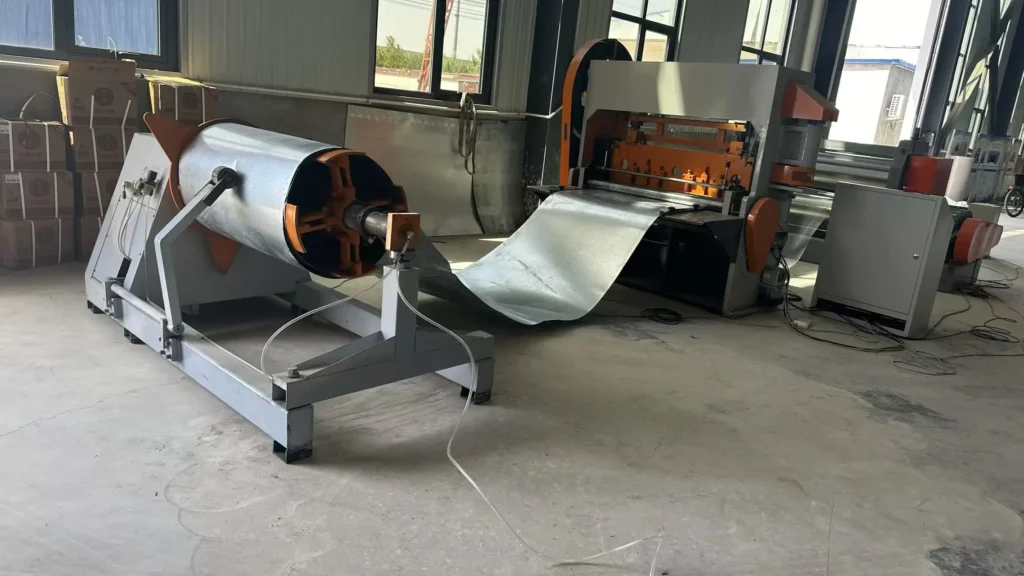

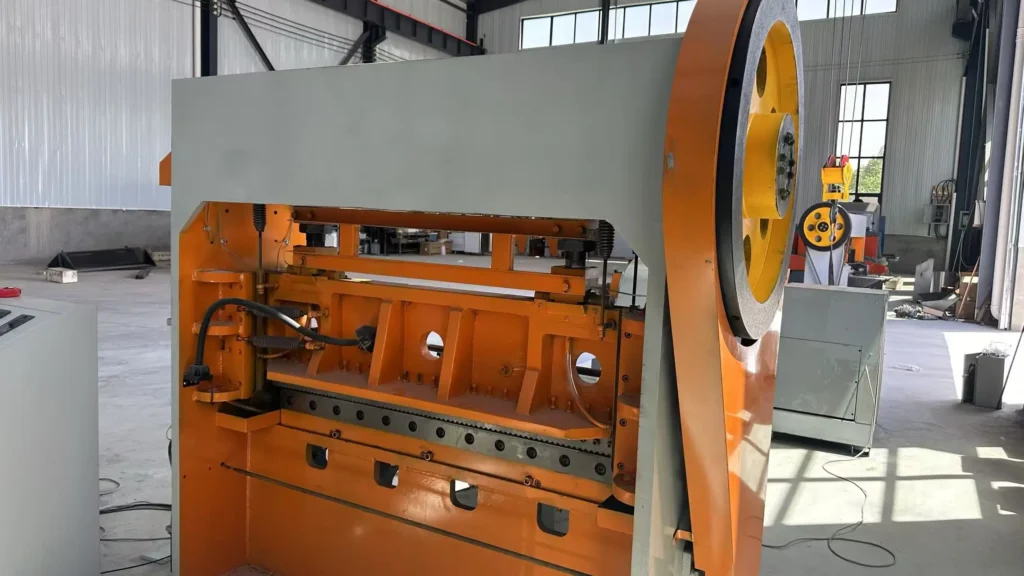

Expanded metal mesh machines are used to produce high-strength expanded metal sheets from various metal coils. Our machines feature stable performance, high precision, easy operation, and long service life.
16T, 25T, 40T, 63T, 100T, 160T available.
2.Key Advantages
- Stable hydraulic system, low noise, long service life
- High punching precision, uniform mesh hole size

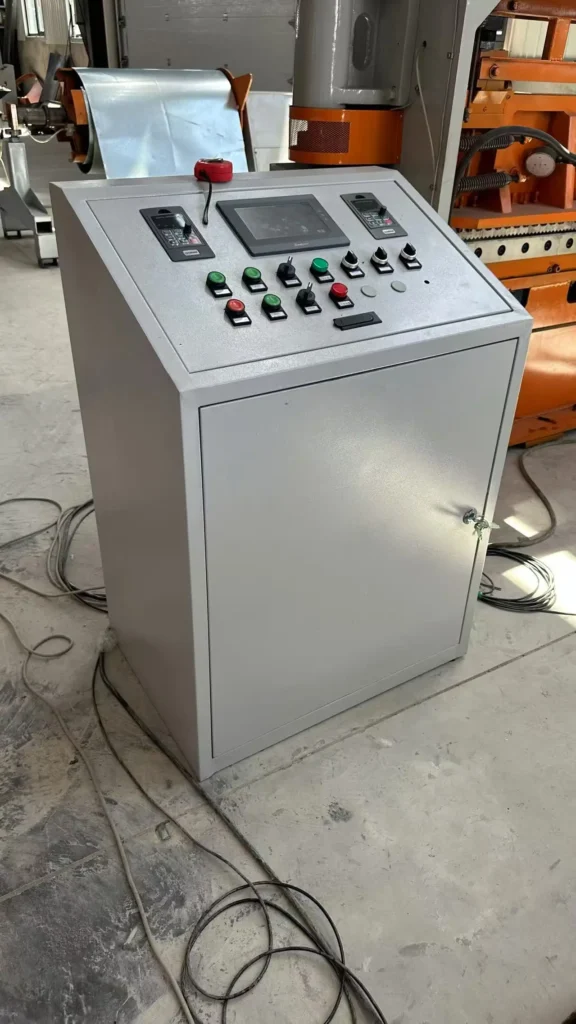

- PLC control system, easy to operate and adjust
- Suitable for steel, iron, aluminum, galvanized sheet, etc.
- Low energy consumption, high production efficiency
- Customizable working width, thickness, and hole shape
- Complete after-sales service and technical support
3.Technical Parameters
3.Technical Parameters
Model | CW25-16 | CW25-25 | CW25-40 | CW25-63 | CW25-100 | KCW25-160 |
Material Thickness(mm) | 0.1-1 | 0.1-1.5 | 0.1-2.5 | 0.5-3 | 0.5-5 | 0.5-8 |
Material Max.width(mm) | 1000 | 1250 | 1500 | 2000 | 2000/2500 | 2000/2500/3200 |
Speed (times/min) | 220 | 200 | 110 | 75 | 60 | 50 |
Feed Distance(mm) | 0-2.2 | 0-3 | 0-6 | 0-6 | 0-10 | 0-10 |
Mesh opening Size LWD(mm) | ≤25 | ≤30 | ≤80 | ≤150 | ≤180 | ≤200 |
Motor(kw) | 5.5 | 5.5 | 11 | 11 | 18.5/22 | 30 |
Weight(T) | 2.2 | 3 | 7 | 11 | 13/15 | 18/20/26 |
Size(mm) | 1.1×1.7×2 | 1.5×2.1×2 | 1.8×3.2×2.1 | 3.4×3.4×2.35 | 3.4×3.6×2.65 | 3.5×3.7×2.65 |
- Common Pain Points & How We Solve Them
- You don’t know which tonnage to choose
Many customers buy the wrong machine: too small to process required thickness, or too large and waste money.
Our solution: We provide professional, free machine selection based on your material thickness, width, and hole type. We recommend the most suitable model from 16T, 25T, 40T, 63T, 100T, to 160T, so you never overspend or underbuy.
- You worry about unstable quality and uneven mesh
Poorly made machines cause inconsistent hole sizes, rough edges, and high rejection rates.

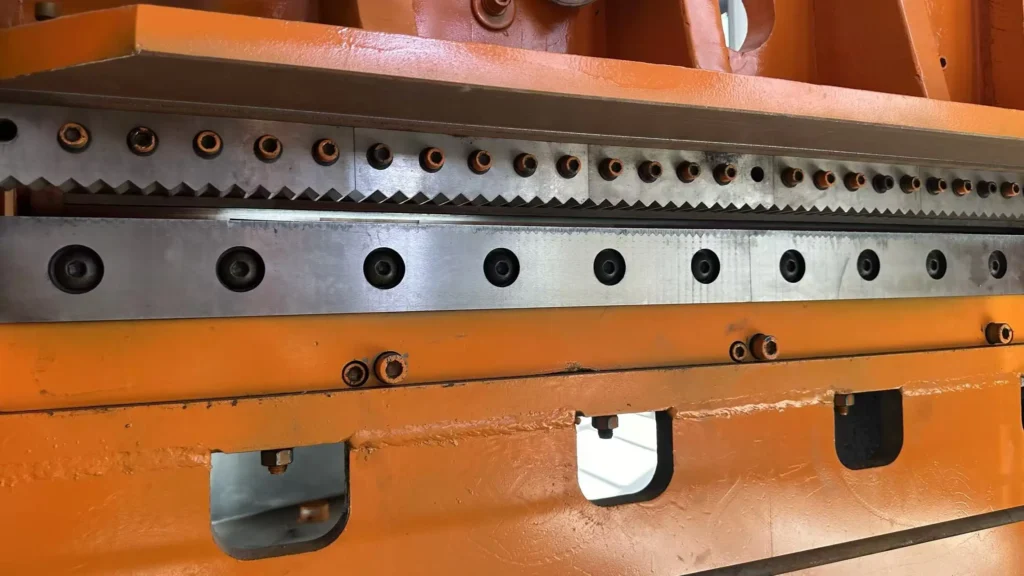

Our solution: Our expanded metal mesh machines feature stable structure, high-precision moulds, and reliable hydraulic systems. They produce uniform, smooth expanded metal with consistent dimensions every time.
- You lack operating experience and worry about difficult setup
Most users are not familiar with machine adjustment and may waste time or damage materials.
Our solution: We offer clear operation manuals, video guidance, and professional technical support. We could also arrange on-site installation and training to help your workers master the machine quickly.
- You care about after-sales service and production downtime
When the machine breaks down, slow service leads to serious production losses.
Our solution: We provide long-term warranty, easy-to-replace wearing parts, and timely after-sales support. We help you minimize downtime and keep production running smoothly.
- You need stable performance and low maintenance cost
Frequent failures and high maintenance costs increase your long-term expenses.
Our solution: Our machines use high-quality components and durable design. They run efficiently with low energy consumption, low noise, and low maintenance cost.
- For Traders & Middlemen
Common Pain Points & How We Solve Them
- You lack professional knowledge and cannot answer customer questions
Many buyers ask about tonnage, thickness range, width, speed, and parameters. If you cannot reply professionally, you lose orders.
Our solution: We provide full English specifications, parameter tables, model comparison charts, and professional technical support. You can directly send our materials to your clients, and we help you answer difficult questions.
- You worry about machine quality affecting your reputation
Unstable machine quality leads to customer complaints, returns, and damage to your business reputation.
Our solution: As a direct manufacturer, we strictly control every production process. We provide tested, qualified machines with stable performance, so you can sell with confidence.
- You need flexible support and fast delivery
Long delivery times make your customers lose patience and turn to other suppliers.
Our solution: We keep regular models (16T–160T) in stock for fast delivery. We also accept flexible orders and customized configurations to meet your market demands quickly.
- You need competitive prices to maintain profit
High factory prices reduce your competitiveness in the local market.
Our solution: We offer exclusive agent prices, quantity discounts, and profit protection policies. We support middlemen to expand their market with better price advantages.
- You need export documents and packaging support
Many traders lack experience in international shipping, fumigation, CE, and customs documents.
Our solution: We provide complete export packaging, standard wooden cases, and all necessary export documents. We also support loading calculation and shipping guidance to make your export business easier.
- Why Choose Us）
- Direct manufacturer, competitive factory price
- Custom design according to your requirement
- Strict quality inspection before delivery
- One-year warranty + lifelong maintenance
- Professional English technical support
- Complete export packing & documents
- Fast delivery for standard models
- Our Service Process）
- Inquiry & requirement confirmation
- Professional model selection
- Quotation & proforma invoice
- Production & inspection
- Packing & shipping
- After-sales support & training
- Q: Which tonnage should I choose?
A: It depends on material thickness and width. We provide free selection service.
- Q: Can you customize the machine?
A: Yes, width, thickness, hole shape, speed can be customized.
- Q: What about delivery time?
A: Standard models in 7–15 days, customized in 15–25 days.
- Q: Do you provide after-sales service?
A: Yes, video guidance, online support, and engineer overseas service available.
- Q: Can you provide export documents?
A: Yes, commercial invoice, packing list, CE, certificate of origin, etc.
- Call to Action
- Tell us your material thickness, width, and hole size.
- We recommend the most suitable model for you.
- Contact us now for free quotation and professional solution!
