Product Introduction
- A nail-making machine is an automated system that processes steel wire into finished nails through processes such as straightening, feeding, cutting, and punching.
- This new machine employs a plunger and oil-pipe lubrication structure, ensuring high operating speed, low noise, and minimal impact. It features an advanced design, compact structure, and attractive appearance. The machine has a low load and operates stably and reliably. Furthermore, it is equipped with an automatic lubrication system with an arc-shaped design, high strength, and long service life.
- The Cowan nail-making machine is designed for continuous operation, stable output, and ease of maintenance, helping manufacturers reduce downtime while increasing overall productivity.
Product Parameters
Cowan offers two types of machines to meet different production needs：high speed nail making machine and common nail making machine.
1.high speed nail making machine
| Type | X50 | X90 | D90 | X130 | X150 |
| Nail diameter(mm) | 1.7-3.0 | 1.8-4.0 | 1.8-4.1 | 2.4-4.5 | 2.5-5.1 |
| Nail Length(mm) | 32-60 | 32-115 | 32-115 | 50-130 | 70-150 |
| Speed(pcs/min) | ≤800 | ≤780 | ≤780 | ≤720 | ≤720 |
| Motor(kw) | 7 | 7 | 7 | 9 | 14 |
| Size(cm) | 135*85*117 150*80*160 | 135*122*105 150*80*160 | 135*122*105 150*80*160 | 155*122*105 150*80*160 | 165*125*130 150*80*160 |
| Weight(kg) | 2200 | 2800 | 3000 | 4200 | 4300 |
2.common nail making machine
| Type | 1C | 2C | 3C | 4C | 5C | 6C |
| Nail diameter(mm) | 1-2.2 | 1.8-2.8 | 2.2-3.4 | 2.5-5.0 | 2.8-5.5 | 3.0-6.0 |
| Nail Length(mm) | 10-25 | 20-50 | 40-85 | 60-125 | 80-175 | 100-200 |
| Speed（pcs/min) | 480 | 320 | 280 | 250 | 200 | 150 |
| Motor(kw) | 1.5 | 2.2 | 3.0 | 5.5 | 7.5 | 9.0 |
| Weight(kg) | 820 | 1100 | 1350 | 1900 | 2200 | 2500 |
| Size(cm) | 135*95*100 | 160*115*110 | 199*120*125 | 220*140*130 | 270*155*150 | 300*175*170 |
Machine Photo

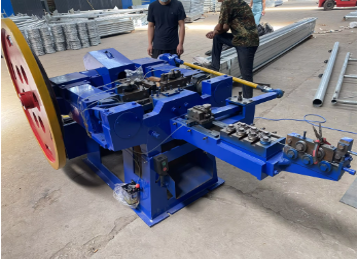

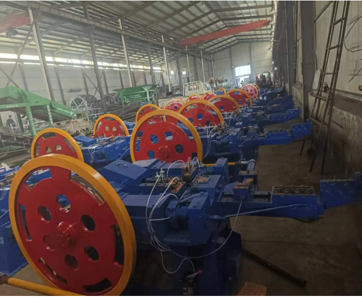

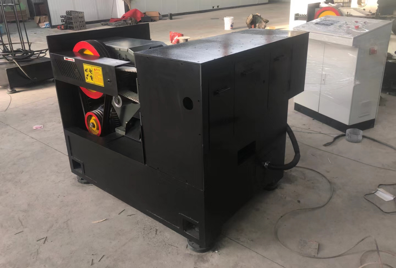

1.High Speed Machine Photo

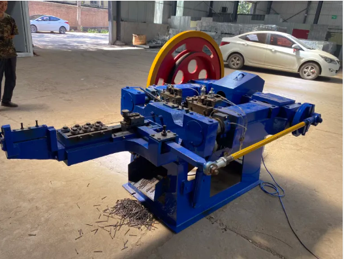

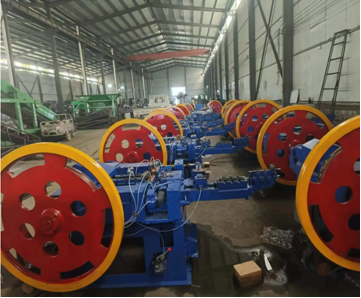

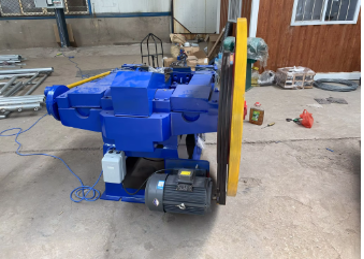

2.Common Machine Photo

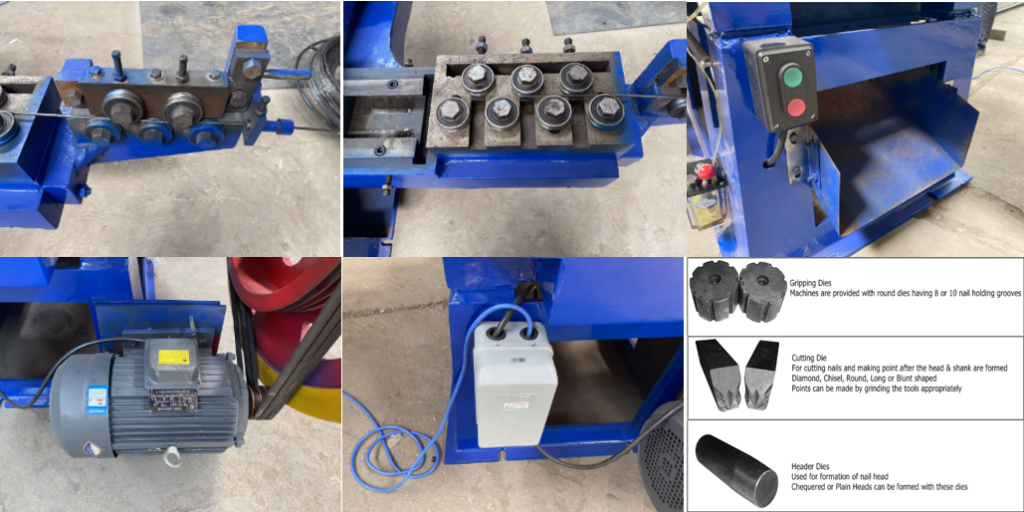

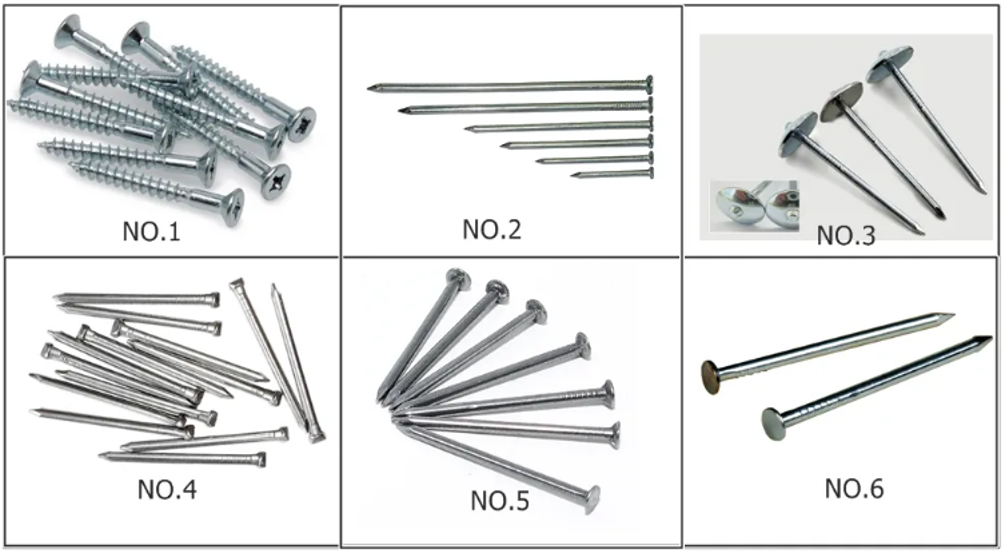

Product Image

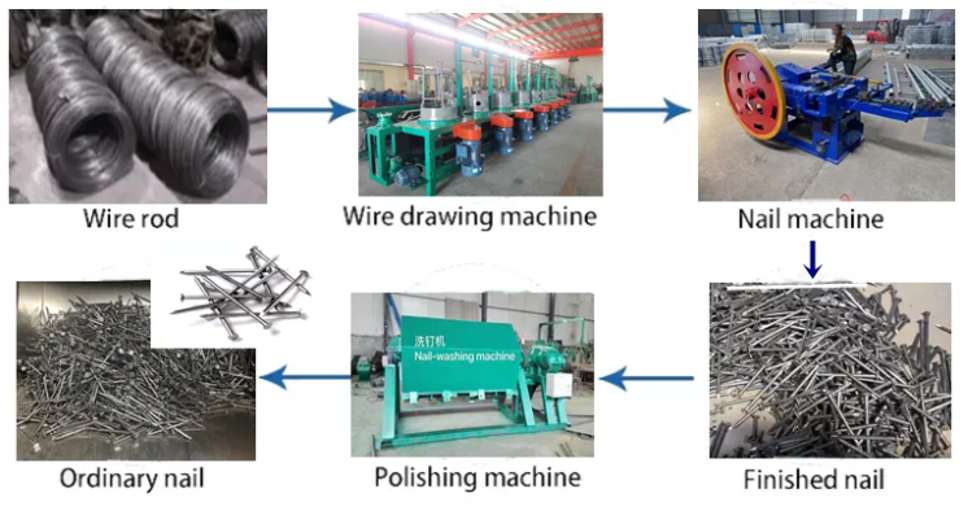

Machine production process

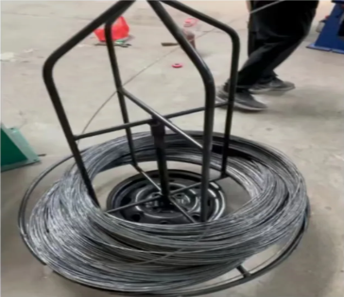

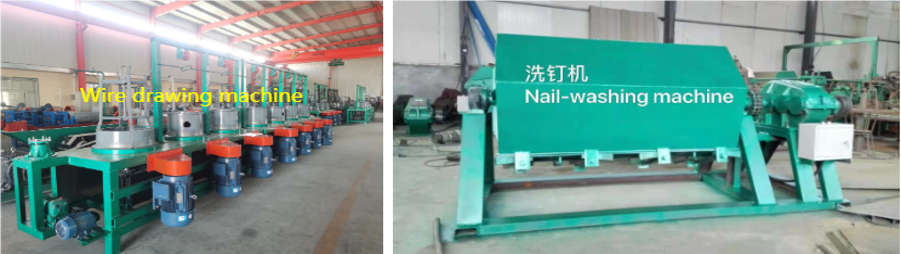

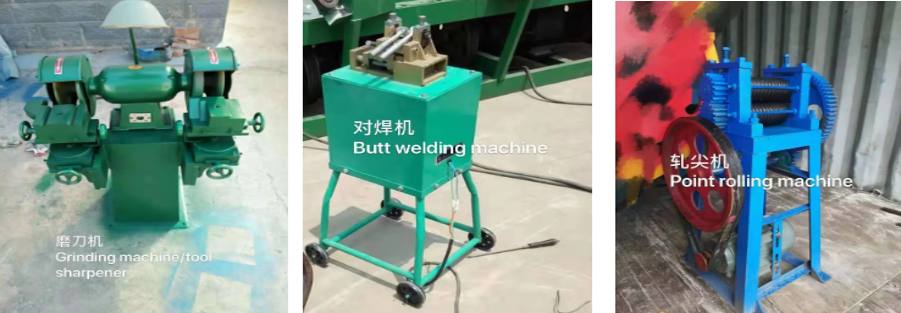

Auxiliary equipment
We can provide you with the set of equipment you need
Machine working video
After-sales service
- One-year warranty and whole life services. (Expect the spare parts and man-made Brocken)
- Online support: 7 Days * 15 hours (8:00 AM-23:00 PM)
