Product Introduction
Wire drawing machines reduce the diameter of steel wire through drawing dies. This process involves passing the wire through a series of dies or molds, reducing its cross-section while maintaining its strength and mechanical properties. The process also improves wire strength and surface quality.
They are widely used to produce nail wire, binding wire, welding wire, spring wire, and other metal wire products.
Cowan offers Straight Line Wire Drawing Machines, Water Tank Wire Drawing Machines, and Pulley Wire Drawing Machines to meet different production needs. All machines feature strong steel structures, stable transmission systems, and drawing blocks coated with supersonic tungsten carbide, providing high hardness and a service life of up to 30,000 hours for reliable and continuous production.
Product Parameter
| Type | Pulley Type | Straight Line Type | Water Tank Type |
| Drawing type | Dry drawing | Dry drawing | Wet drawing |
| Raw material | Low /medium/high carbon steel wire | Low-carbon steel wire(SAE1006/ SAE1008/SAE1010) | Annealed galvanized wire,black wire,copper wire, Nickel wire |
| Inlet wire diameter | 8/6.5/5.5/5mm | 6.5/5.5 mm | 0.1-2.0 mm |
| Outlet wire diameter | Min.1.6 mm | Min.1.6 mm | 0.025-0.8 mm |
| Drawing speed | Max.16-20 m/s | – | Max.500 m/min |
| Block diameter | 560/600/700 mm | 560 mm | – |
| Inverter | Yes | Yes | Yes |
| Mold type | Rotating/Non-rotating | Non-rotating | Non-rotating |

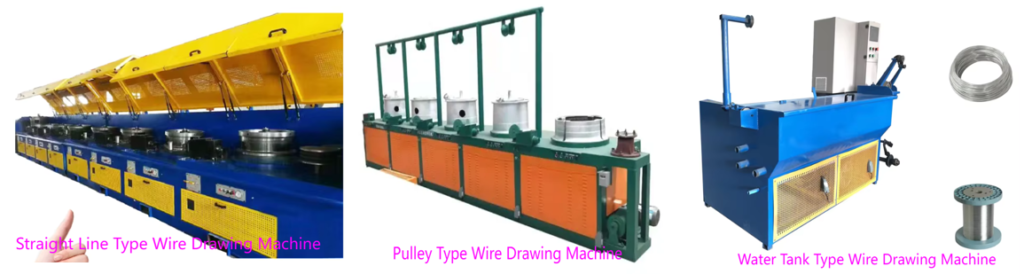

Machine Photo
Straight Line Wire Drawing Machine
Pulley Wire Drawing Machine

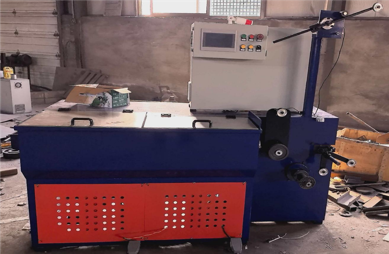

Water Tank Wire Drawing Machine

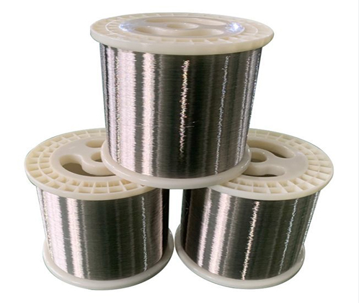

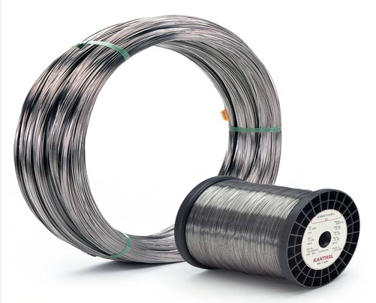

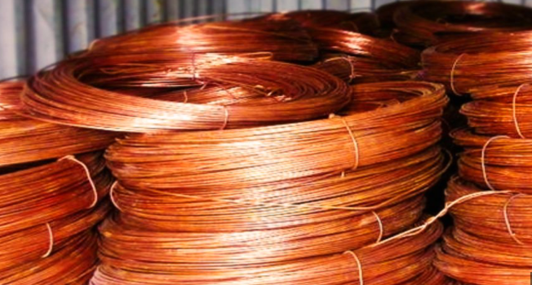

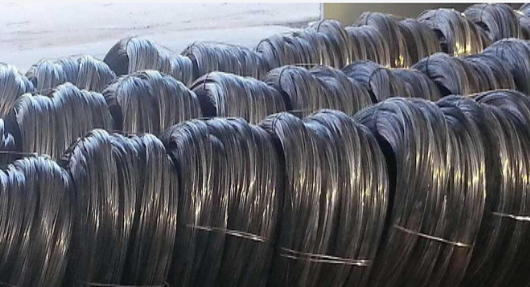

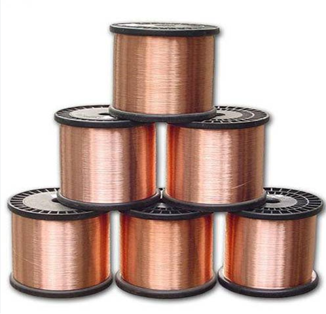

Product Image

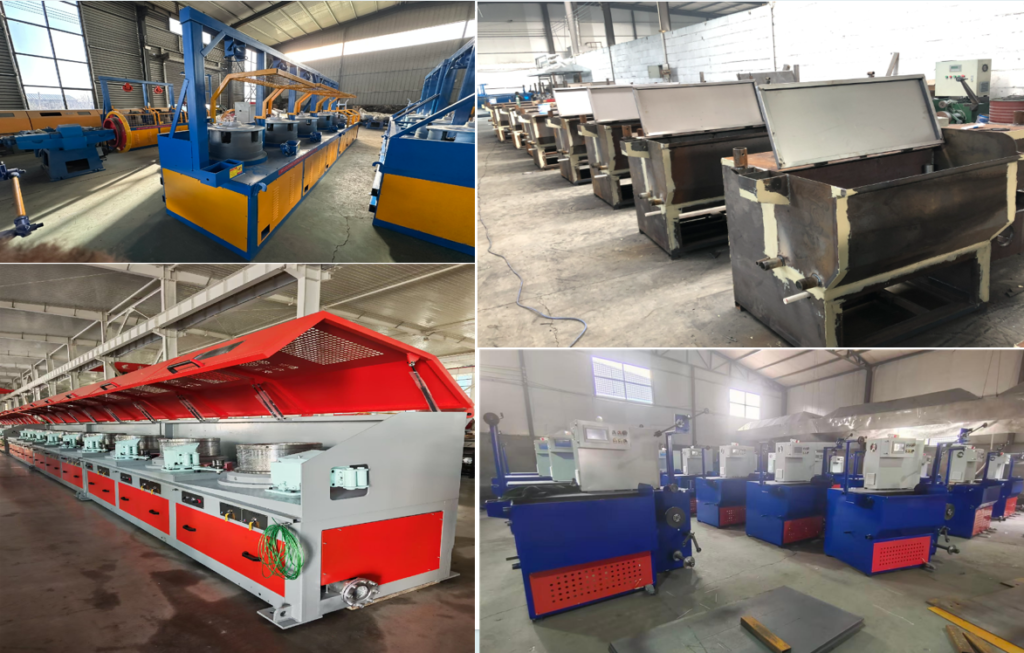

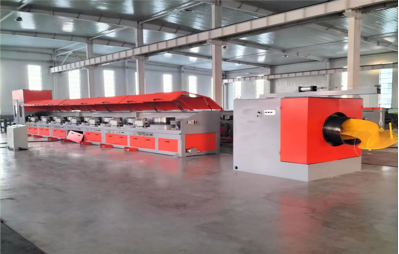

Application scenario
Machine working video
After-sales service
- One-year warranty and whole life services. (Expect the spare parts and man-made Brocken)
- Online support: 7 Days * 15 hours (8:00 AM-23:00 PM)
